Ram Blowout Preventers |
|
We supply LWP, LWS, SL/SLX, LXT style, and type U style ram blowout
preventers; their sizes, models and technical specifications are in the
following tables. Our blowout preventers are manufactured in accordance
with API Specification 16A, Third Edition and NACE MR0175 per API
Specification 16A, Temperature T20. They meet the applicable API and NACE
requirements for H2S service. |
| |
|
|
|
|
 |
|
|
|
|
 |
| |
|
|
|
Ram BOP
Sizes and Models |
| |
|
|
|
Working
Pressure(psi) |
Bore Size(inches) |
|
7-1/16 |
9 |
11 |
13-5/8 |
16-3/4 |
18-3/4 |
20-3/4 |
21-1/4 |
26-3/4 |
|
15,000 |
|
|
|
|
|
|
|
|
|
|
10,000 |
|
|
|
|
|
|
|
|
|
|
5,000 |
|
|
|
|
|
|
|
|
|
|
3,000 |
|
|
|
|
|
|
|
|
|
|
2,000 |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|

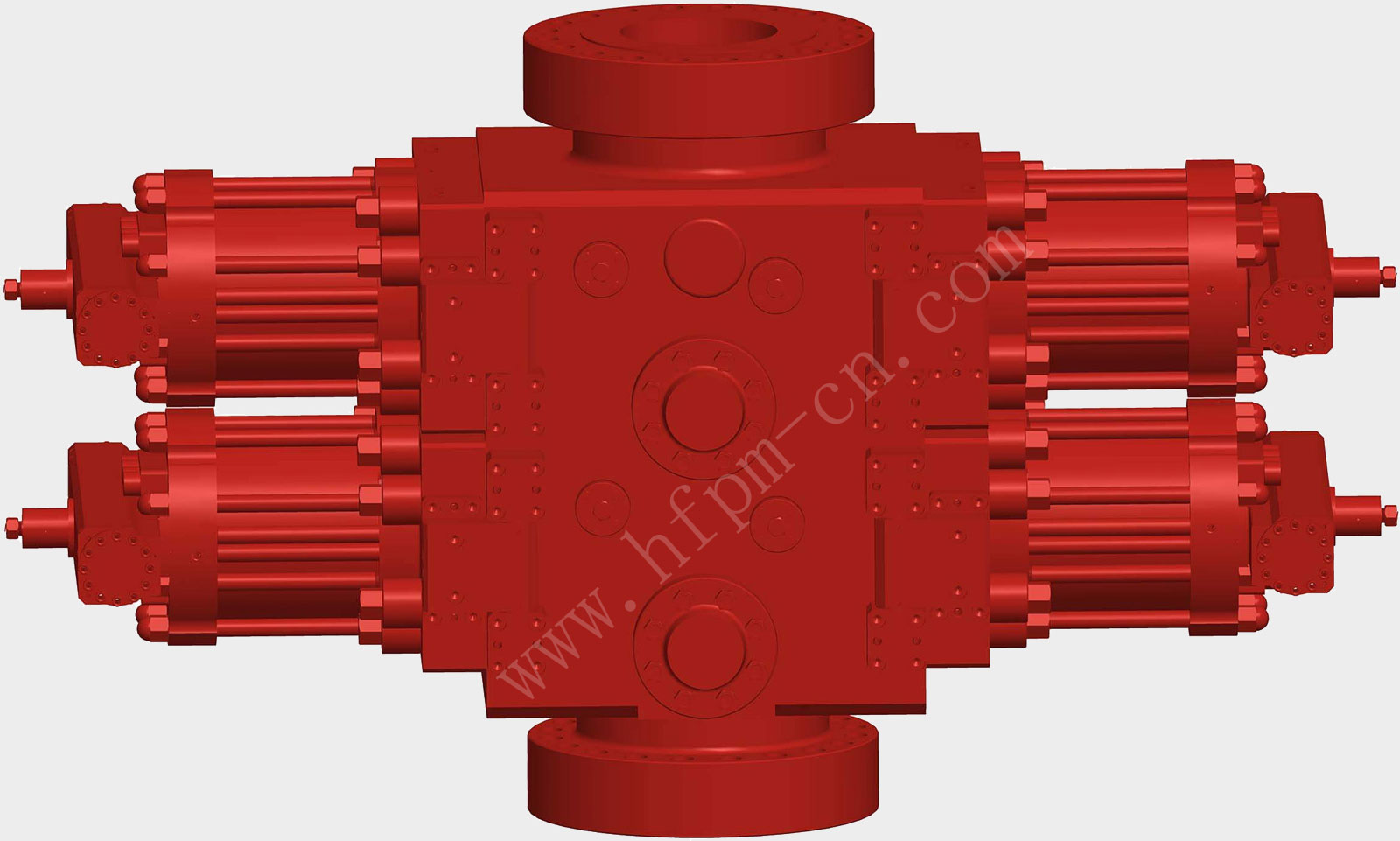

LWP,LWS,SL/SLX Style Ram BOP
Specifications: |
| |
|
|
|
Bore(inches) |
7-1/16 |
9 |
11 |
13-5/8 |
20-3/4 |
21-1/4 |
|
Working
Pressure(psi) |
5,000 |
10,000 |
3,000 |
5,000 |
3,000 |
5,000 |
10,000 |
3,000 |
5,000 |
10,000 |
3,000 |
2,000 |
|
Length(inches) |
58-1/4 |
79 |
60 |
79-1/8 |
72-5/8 |
89-1/4 |
122-3/4 |
130-1/4 |
130-1/4 |
128-3/4 |
127-1/2 |
127-1/2 |
|
Width(inches) |
21-1/2 |
30 |
21-1/2 |
23-1/16 |
25-15/16 |
28-3/4 |
38-9/16 |
40-3/4 |
40-3/4 |
43-1/16 |
41-1/4 |
40-7/8 |
|
Height(inches),Single,StudXStud |
15 |
22-7/8 |
11-1/8 |
14-1/2 |
14-1/2 |
19-1/2 |
23-1/2 |
17-1/4 |
17-1/4 |
28 |
23-1/8 |
23-1/8 |
|
Height(inches),Double,StudXStud |
26-3/4 |
36-5/8 |
22 |
29-1/2 |
29-3/8 |
33 |
40-7/8 |
34 |
34 |
46 |
49-1/4 |
44-7/16 |
|
Weight(lbs),Single,StudXStud |
1,385 |
5,560 |
1,170 |
2,870 |
2,116 |
4,150 |
11,100 |
8,400 |
8,800 |
13,200 |
7,448 |
7,285 |
|
Weight(lbs),Double,StudXStud |
2,504 |
9,900 |
2,200 |
5,750 |
4,096 |
7,725 |
20,560 |
15,350 |
15,620 |
23,400 |
14,615 |
14,455 |
|
Gallons to
Open |
1.18 |
2.34 |
0.68 |
2.27 |
1.45 |
2.62 |
7.0 |
4.46 |
4.46 |
10.52 |
4.46 |
4.46 |
|
Galons to
Close |
1.45 |
2.72 |
0.77 |
2.58 |
1.74 |
2.98 |
9.45 |
5.44 |
5.44 |
10.58 |
5.07 |
5.07 |
|
Closing
Ratio |
5.45:1 |
7.11:1 |
4.5:1 |
5.57:1 |
5.45:1 |
5.57:1 |
7.11:1 |
5.54:1 |
5.54:1 |
7.11:1 |
5.57:1 |
5.57:1 |
|
| |
|
|
|
Type U Style Ram BOP
Specifications: |
| |
|
|
|
Bore(inches) |
7-1/16 |
9 |
11 |
13-5/8 |
20-3/4 |
21-1/4 |
|
Working
Pressure(psi) |
5,000 |
10,000 |
3,000 |
5,000 |
3,000 |
5,000 |
10,000 |
3,000 |
5,000 |
10,000 |
3,000 |
2,000 |
|
Length(inches) |
74 |
74 |
95.25 |
95.25 |
96.25 |
124 |
112.13 |
112.13 |
114.13 |
139.00 |
143.69 |
143.69 |
|
Width(inches) |
20.25 |
20.63 |
25.13 |
25.13 |
25.75 |
32 |
29.25 |
29.25 |
30.25 |
39.50 |
39.52 |
39.52 |
|
Height(inches),Single,StudXStud |
27.50 |
30.56 |
29.06 |
34.31 |
35.69 |
44.81 |
31.31 |
33.81 |
41.69 |
53.69 |
40.56 |
37.90 |
|
Height(inches),Double,StudXStud |
44.19 |
48.63 |
49.25 |
54.50 |
55.88 |
69.75 |
53.38 |
55.88 |
66.63 |
81.75 |
66.13 |
62.75 |
|
Weight(lbs),Single,StudXStud |
2,800 |
3,550 |
5,300 |
5,600 |
6,400 |
10,300 |
7,200 |
7,700 |
10,300 |
23,700 |
13,650 |
13,250 |
|
Weight(lbs),Double,StudXStud |
5,200 |
6,400 |
9,900 |
10,200 |
11,300 |
18,400 |
14,300 |
14,800 |
18,400 |
43,250 |
25,550 |
15,150 |
|
Locking
Screw Turns(Each End) |
18 |
18 |
27 |
27 |
27 |
32 |
32 |
32 |
32 |
45 |
46 |
46 |
|
Gallons to
Open |
1.3 |
1.3 |
3.4 |
3.4 |
3.4 |
5.7 |
5.5 |
5.5 |
5.5 |
10.4 |
8.1 |
9.0 |
|
Galons to
Close |
1.3 |
1.3 |
3.5 |
3.5 |
3.5 |
5.8 |
5.8 |
5.8 |
5.8 |
10.6 |
8.7 |
8.7 |
|
Closing
Ratio |
6.9:1 |
6.9:1 |
7.3:1 |
7.3:1 |
7.3:1 |
9.8:1 |
7.0:1 |
7.0:1 |
7.0:1 |
10.6:1 |
7.0:1 |
7.0:1 |
|
| |
|
|
|
|
