Hammer Union |
The Hammer Union can be used for
cementing trucks, all kinds of manifolds and other high pressure
equipment, and pipes. It is an important part for transporting oil.
Water, fracturing fluid and mixed fluid . These products are all
made of high quality steel by forging and finishing cut .They have
good. mechanical performance and sealing property. Especially they
can operate under the bad weather condition. They can be assembled
fixed easily and conveniently. Main technical parameter model number
collecting norm working pressure ,structural length drift diameter.
the product adopts some end connections of pipeline thread, tubing
thread, butt-weld.
The Hammer Union type mainly
consists of Figure 100, Figure 200, Figure 206, Figure 400, Figure
600,Figure 602, Figure 1002, Figure 1003,Figure 1502 and Figure
2002. |
|
|
|
|
Figure 100 Hammer Union |
|
Nominal pipe Size:2”, 2-1/2”, 3”, 4” , 6” , 8”;
Pressure
Rating:1000psi cwp;1500 psi test;
Connections Type:
pipeline thread, tubing thread, butt-weld;
Component Parts:
Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models
to NACE MR-01-75.
Recommended service
Manifold and line
connections.
Features
●Pressure-tight make-up with
hammer;●Economical, low-pressure union |
 |
| |
|
|
Figure 200 Hammer Union |
|
Nominal pipe Size:1”, 1-1/4”, 1-1/2”,2”, 2-1/2”,3”,
4”;
Pressure Rating:2000psi cwp;3000 psi
test;
Connections Type: pipeline thread, tubing thread,
butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal
Ring;
Sour Service Models to NACE MR-01-75.
Recommended
service
General-service manifolds and lines.
Features
●Economical, general-purpose union;
●Butt-weld
available. |
 |
| |
|
|
Figure 206 Hammer Union |
|
Nominal pipe Size:1”, 2”, 3”,4”,6”,8”, 10”;
Pressure
Rating:2000psi cwp;3000 psi test;
Connections Type:
pipeline thread, tubing thread, butt-weld;
Component Parts:
Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models
to NACE MR-01-75.
Recommended service
Manifold and line
connections, suction service, and corrosion
service.
Features
●O-ring in male sub improves sealing
and protects metal-to-metal seal against
corrosion;
●Replaceable O-ring extends union service
life. |
 |
| |
|
|
Figure 400 Hammer Union |
|
Nominal pipe Size:2”, 2-1/2”,
3”,4”,6”,8”,10”,12”;
Pressure Rating:4000psi cwp;6000 psi
test;
Connections Type: pipeline thread, tubing thread,
butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal
Ring;
Sour Service Models to NACE MR-01-75.
Recommended
service
Manifold and line connections, pump suction, and
mud service.
Features
●2-1/2” through 12” sizes have
O-rings for primary seal;
●Butt-weld available. |
 |
| |
|
|
Figure 600 Hammer Union
|
|
Nominal pipe Size:1”, 2”, 3”, 4”;
Pressure
Rating:6000psi cwp;9000 psi test;
Connections Type:
pipeline thread, tubing thread, butt-weld;
Component Parts:
Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models
to NACE MR-01-75.
Recommended service
Steam service,
boiler connections, manifold, and line connections for
production, drilling, and well servicing.
Features
●Bronze seat provides primary seal; will not rust in water
services. |
 |
| |
|
|

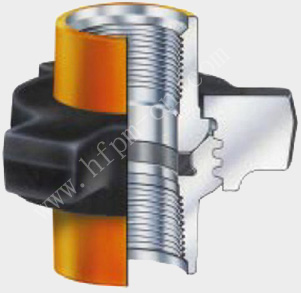

Figure 602 Hammer Union
|
|
Nominal pipe Size:1”, 2”, 3”, 4”;
Pressure
Rating:6000psi cwp;9000 psi test;
Connections Type:
pipeline thread, tubing thread, butt-weld;
Component Parts:
Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models
to NACE MR-01-75.
Recommended service
Manifold and line
connections and mud service.
Features
●Compact;
●Replaceable, lip-type seal provides primary
seal, protects secondary metal-to metal seal, and minimizes
flow turbulence;●Butt-weld available
|
 |
| |
|
|
Figure 1002 Hammer Union
|
|
Nominal pipe Size:1”, 2”, 3”, 4”,5”,6”;
Pressure Rating:
1” to 4” 10000psi cwp;15000 psi test; 5” to 6” 7500psi
cwp;12000 psi test;
Connections Type: pipeline thread,
tubing thread, butt-weld;
Component Parts: Nut, Male Sub,
Female Sub, Seal Ring;
Sour Service Models to NACE
MR-01-75.
Recommended service
Cementing, fracturing,
acidizing, testing, and choke and kill lines.
Features
●Replaceable, lip-type seal provides primary seal,
protects secondary metal-to metal seal, and minimizes flow
turbulence;
●Butt-weld available;
●5” and 6” sizes have
O-rings for primary seals. |
 |
| |
|
|
Figure 1003
Hammer Union |
|
Nominal pipe Size:2”, 3”, 4”,5”;
Pressure Rating: 2” to
3” 10000psi cwp;15000 psi test; 4” to 5” 7500psi cwp;12000 psi
test;
Connections Type: pipeline thread, tubing thread,
butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal
Ring;
Sour Service Models to NACE MR-01-75.
Recommended
service
For high-pressure connections where lines can’t be
aligned.
Features
●Ball seat provides positive seal with
up to 7-1/2°misalignment; 2” model up to 4°;
●Replacement
O-ring on male sub provides primary seal, and protects
metal-to-metal seal against abrasion and
corrosion;
●Available with threaded or butt-weld
ends. |
 |
| |
|
|

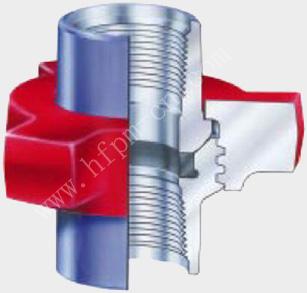

Figure 1502
Hammer Union |
|
Nominal pipe Size:2”, 3”, 4”;
Pressure Rating: 15000psi
cwp;22500 psi test;
Connections Type: pipeline thread,
tubing thread, butt-weld;
Component Parts: Nut, Male Sub,
Female Sub, Seal Ring;
Sour Service Models to NACE
MR-01-75.
Recommended service
Cementing, fracturing,
acidizing, testing, and choke and kill
lines.
Features
●Replaceable, lip-type seal provides
primary seal, protects secondary metal-to metal seal, and
minimizes flow turbulence;
●Butt-weld available; |
 |
| |
|
|
Figure 2002 Hammer Union
|
|
Nominal pipe Size:2”, 3”;
Pressure Rating: 20000psi cold
working pressure;
Connections Type: butt-weld;
Component
Parts: Detachable Nut, Male Sub, Female Sub, Seal Ring,
Retainer Segment, Retainer Ring;
Sour Service Models to
NACE MR-01-75.
Recommended service
Cementing,
fracturing, acidizing, testing, and choke and kill
lines.
Features
●Replaceable, lip-type seal provides
primary seal, protects secondary metal-to metal seal, and
minimizes flow turbulence;●Butt-weld configurations
only |
 |
|
|
|
|
|
|
