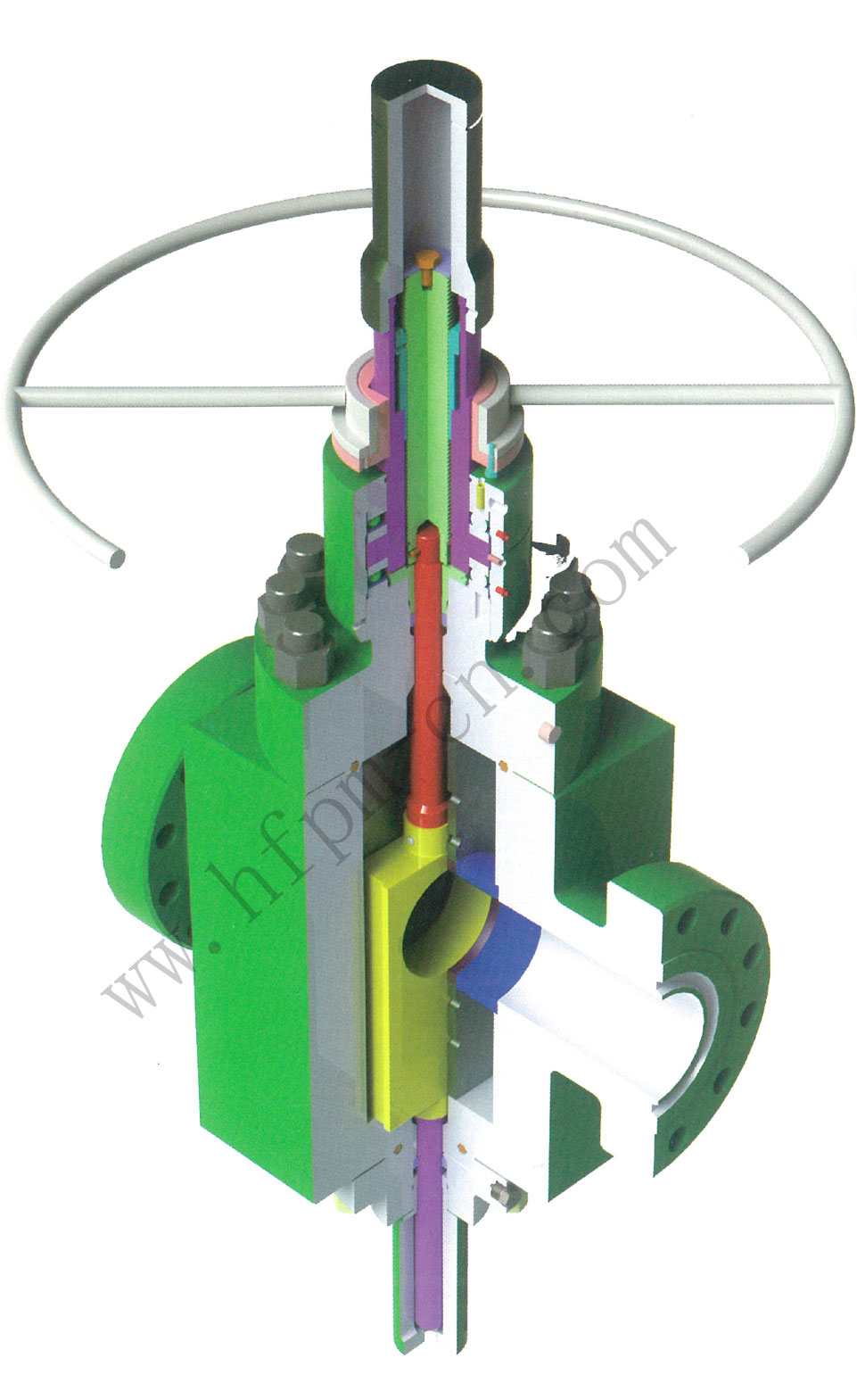

FC type gate valve has a non-rising stem with a slab gate, floating
seat ring body bushing design to provide safe dependable services. The
standard features of FC gate valves include full-bore thru-conduit design
and metal to metal seals between body and bonnet, gate and seat, and seat
and body. The above features make it ideally suited for drilling manifold
and production operations. Materials and trims are available for all
operating conditions. It is available in flanged ends in standard bore
sizes from 1-13/16" through 7-1/16" in working pressures from 2,000 psi to
20,000 psi.

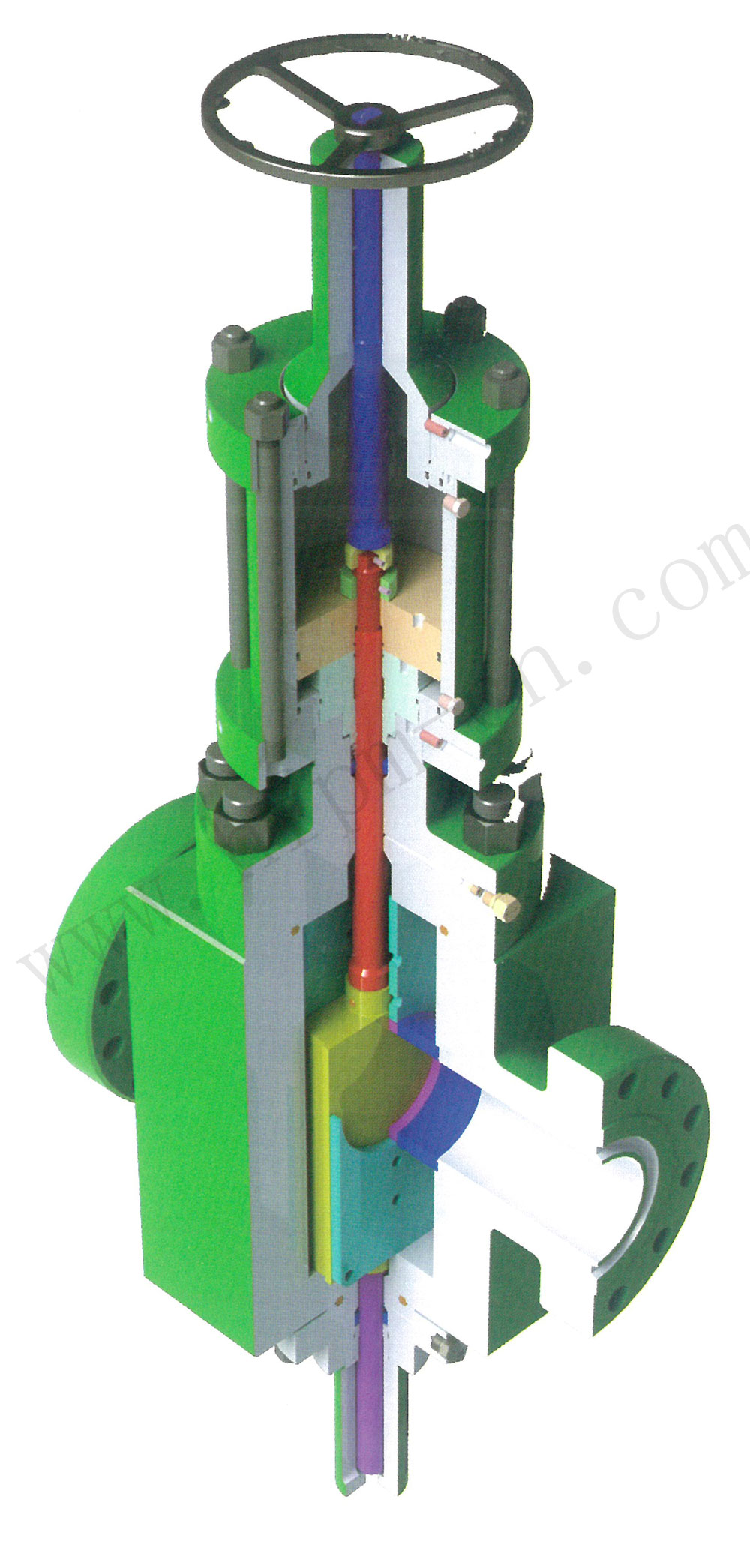

Ball Screw Operator is available for large bore and high pressure gate
valves. All of our valves can be actuated by hydraulic or pneumatic
actuators. |

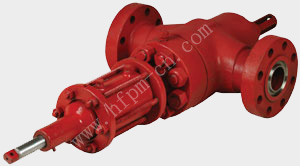

Cameron FC Gate Valves
