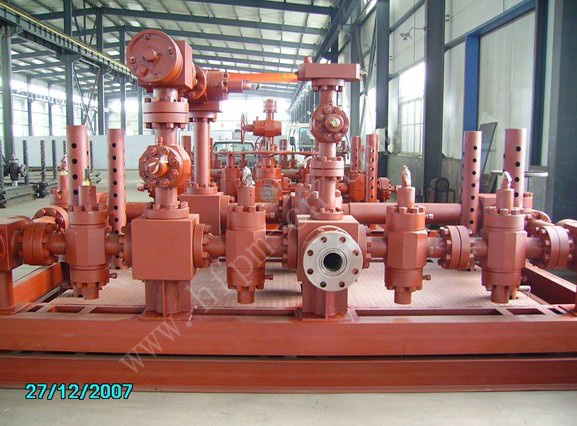

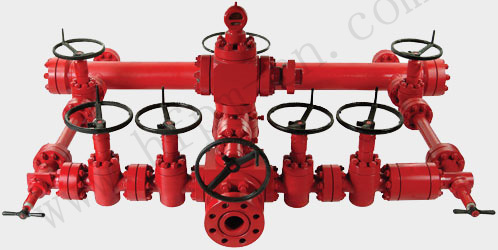

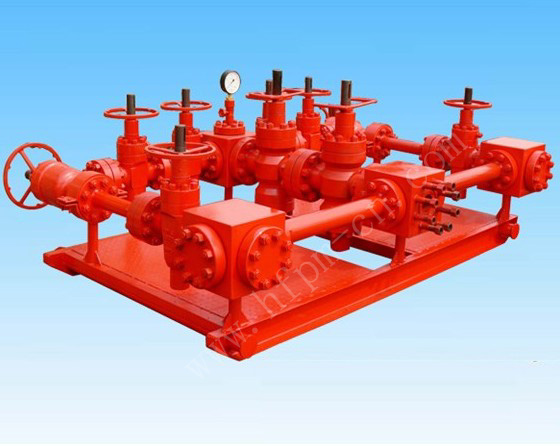

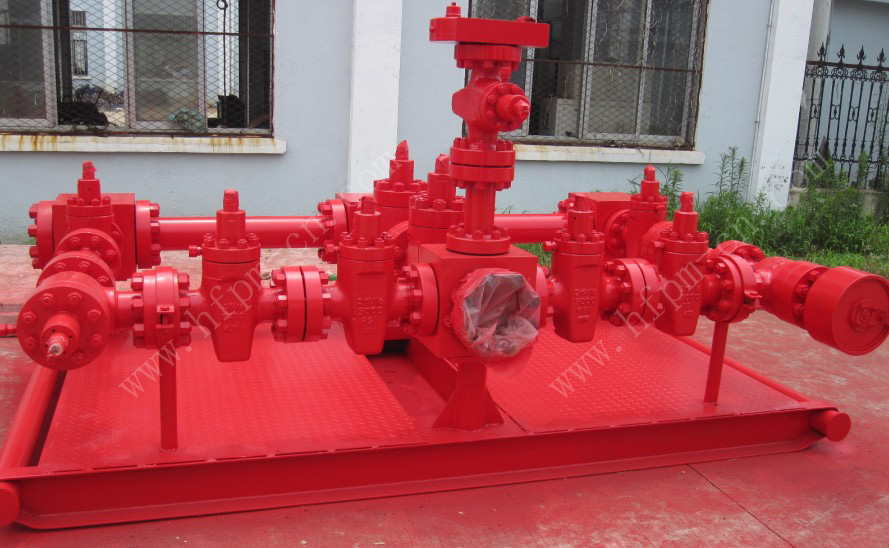

Manifolds(API-16C) |
Our manifold designs meet virtually any industry
requirement, including H2S environments up to 15,000 psi
Working
Temperature: -20 - 250
Specification Level: PSL1 - PSL4
Material
Class: AA BB CC DD EE FF
Performance Level: PR1 - PR2
Working
Medium: Mud, Petroleum, Natural Gas. |
| |
|
|
|
 |
 |
|
|
|
|
 |
 |
|
|
|
|
 |
 |
|
|
|
|
 |
|
|
|
|
Manifolds Specifications: |
|
|
|
|
|
 |
|
|
|
|
 |
|
|
|
|
 |
| |
|
|
|
P |

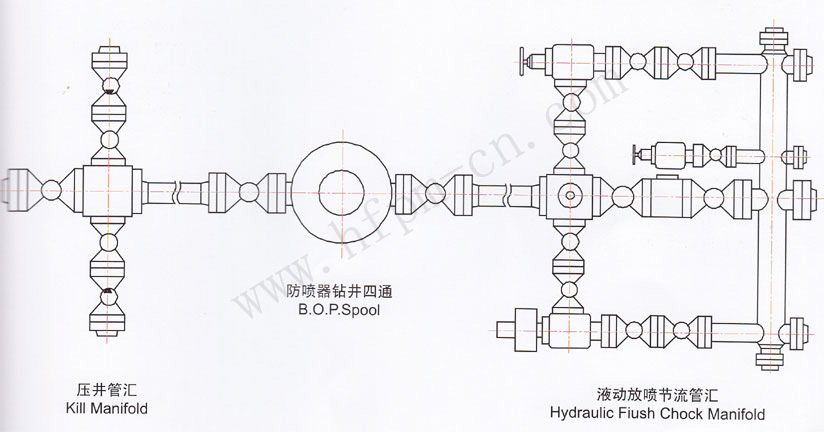

放喷(Fiush) |

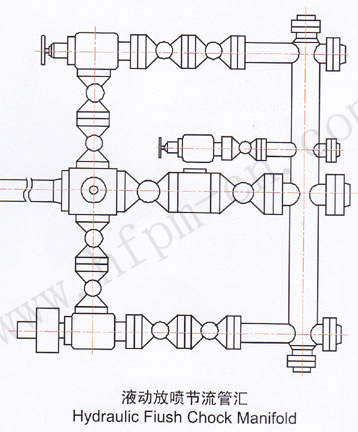

节流(Cheek) |

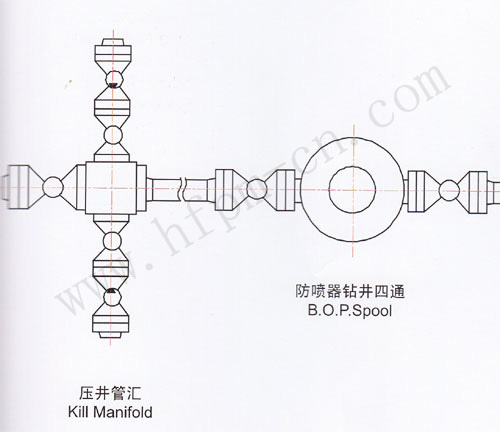

压井(Kill) |
|
5000PSI |
4 1/16"、3
1/8" |
3 1/8"、2
9/16" |
3 1/8"、2
9/16" |
|
1000PSI |
4 1/16"、3
1/16"、7 1/16" |
3 1/16"、2
9/16"、4 1/16" |
3 1/16"、2
9/16"、4 1/16" |
|
15000PSI |
4 1/16"、3
1/16"、7 1/16" |
2 9/16"、4
1/16" |
2 9/16"、4
1/16" |
|
7-1/16 |
3,000 |
2-3/8" UP TBG |
2-3/8" UP TBG |
注：结构形式可根据用户需求
Note: Texture Type For
Customer Demand |
|
| |
|
|
|
|
